Fill Kit™ Retrieval Ropes with Gauges
Lift and lower plugs with ease.
Our heavy-duty retrieval ropes can be used to inflate plugs and monitor gauge pressure.
Retrieval ropes are some of the hardest-working pieces of equipment at your construction site. They need to be strong enough to lift heavy plugs in and out with ease yet flexible enough to protect its fittings. Our Fill Kit™ retrieval ropes come with heavy-duty natural rubber inflation lines and pressure gauges, making this simple piece of equipment one of the hardest-working in your inventory or shop.
450 Series HD-Max Fill Kit / Retrieval Rope (Rope/Hose)
445-20a Series HD-Max Fill Kit / Retrieval Rope (Rope/Hose)
440-20 Series Fill Kit / Retrieval Rope (Rope/Hose)
430-20 Series Fill Kit / Retrieval Rope (Rope/Hose)
420-30 Series Fill Kit / Retrieval Rope (Rope/Hose)
410-30 Series Fill Kit / Retrieval Rope (Rope/Hose)
410-20 connected to 100-08 fill kit retrieval rope
Fill Kit™ Retrieval Rope Specs
Plug Technologies, Inc. manufactures and supplies Fill Kit™ retrieval ropes in a range of lengths to accommodate any project. Choose a rope with removal gauge or universal quick coupler for maximum efficiency.
Our 410, 420, and 430 series Fill Kit™ retrieval ropes include inflation hoses so you can lift and lower plugs in and out of the manholes and inflate and deflate plugs from outside the danger zone. The retrieval ropes have a 3,000-pound tensile strength and snap hooks so you can easily attach and detach ropes from plugs. The 430 series ropes include a 0-60 PSI gauge tree with snubber, tank value, and ¼-inch dump valve.
Our 440 and 445 Fill Kit™ retrieval ropes include 3,000-pound tensile strength rope, 3/8-inch inflation lines, and 0-60 PSI gauge trees. Gauge Guardian™ natural rubber protects gauges from pipe hazards. The gauge on the 445 series can be removed.
The heavy-duty 450 and 455 series are ideal for rental fleets. They include high-tensile rope, 3/8-inch inflation lines, gauge trees, and Gauge Guardian™. The 455 gauge can be removed. Heavy-duty fittings on the 450 and 455 eliminates weakness in the hose to help avoid leaks.
455 and 450 Series Max-HD Fill Kit/Retrieval Rope (Rope/Hose)
This is our most durable Fill Kit and is recommended for anyone who is renting pipe plugs.

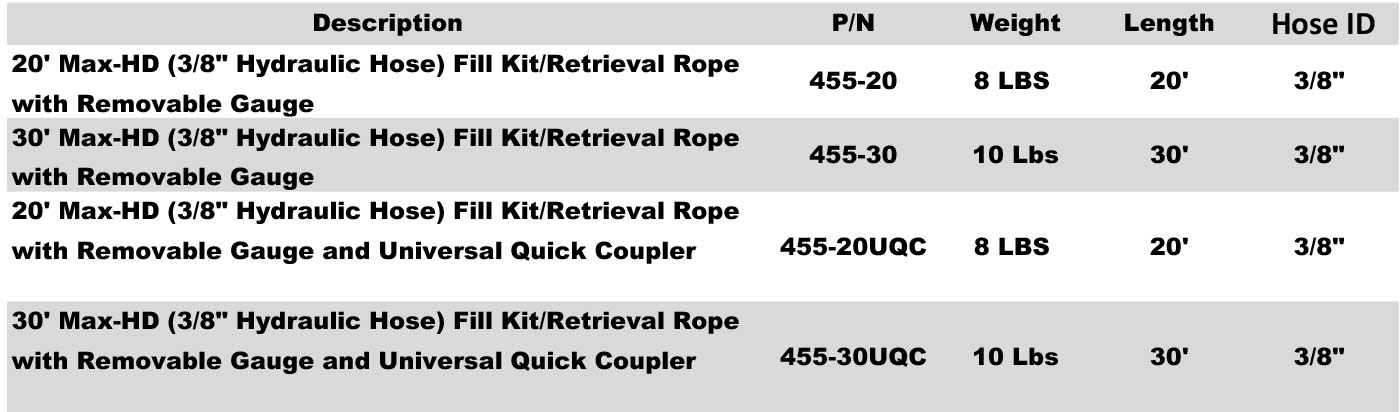

455 Series HD-Max Fill Kit/Retrieval Rope (3/8” Hydraulic Hose) with Removable Liquid Filled Gauge
“Heavy Duty” is in the name!
Hydraulic Hose: 3/8” Hydraulic Hose with heavy duty hydraulic fittings. NPT (male) connection.
Swivel NPT Fitting: The plug end of the hose includes a swivel (M) NPT fitting. The swivel prevents the hose from getting twisted or tangled in the manhole and allows the hose to be easily hard plumbed to the plug.
Crimped hydraulic fitting eliminates the weak section near the hose barbs of rubber or vinyl hoses. Helps to minimize leaking hose!
Heavy Duty Natural Rubber Gauge Guardian™ protects the gauge from the hazardous construction environment.
Includes Removable 0-60 PSI Liquid Filled Gauge.
Add UQC to the end of any part number and the Fill Kit will include a universal coupler that can be used with both industrial and automotive QD nipples.
450 Series HD-Max Fill Kit/Retrieval Rope (3/8” Hydraulic Hose) with Gauge
“Heavy Duty” is in the name!
Hydraulic Hose: 3/8” Hydraulic Hose with heavy duty hydraulic fittings. NPT (male) connection.
Swivel NPT Fitting: The plug end of the hose includes a swivel (M) NPT fitting. The swivel prevents the hose from getting twisted or tangled in the manhole and allows the hose to be easily hard plumbed to the plug.
Crimped hydraulic fitting eliminates the weak section near the hose barbs of rubber or vinyl hoses. Helps to minimize leaking hose!
Heavy Duty Natural Rubber Gauge Guardian™ protects the gauge from the hazardous construction environment.
Add UQC to the end of any part number and the Fill Kit will include a universal coupler that can be used with both industrial and automotive QD nipples.
430 Series Fill Kit/Retrieval Rope (Rope/Hose)
This is our most economical Fill Kit with a gauge. Great for plugs 12”-24” or smaller.

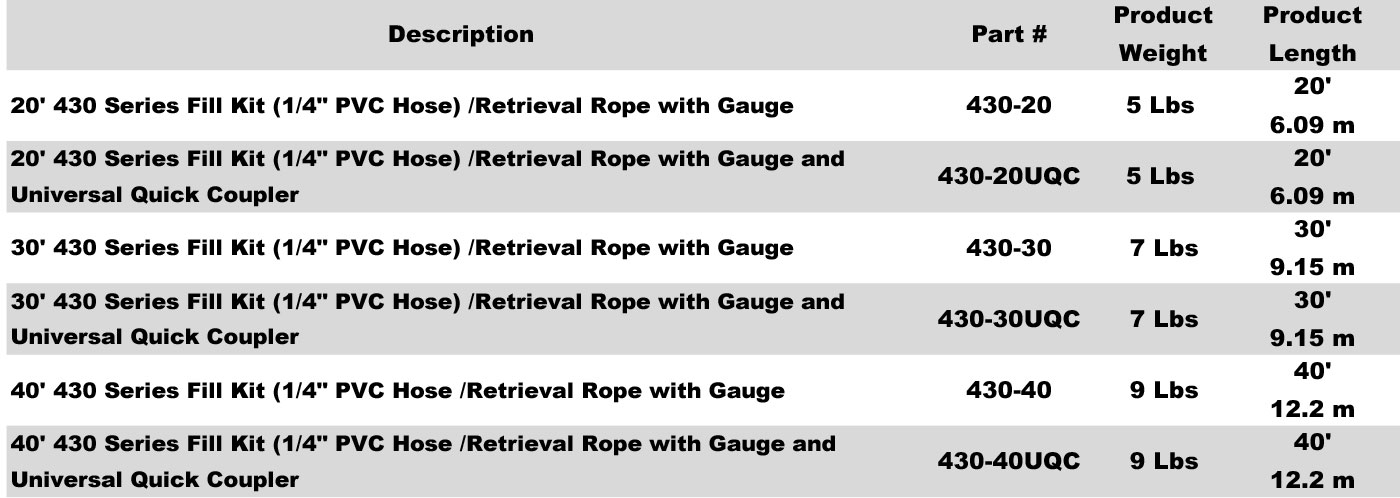

430 Series Fill Kit/Retrieval Rope with Liquid Filled Gauge
This combination retrieval rope and inflation hose can be used to lift and lower plugs into and out of the manhole and has a fill line for inflating and deflating plugs from outside of the danger zone.
The polypropylene rope has a 3000 lb tensile strength which protects the fill line from being over stressed during the installation of your plugs.
The snap hook makes is easy to attach and detach the retrieval rope from the plug. The fill line comes with a tank valve (tire valve) on one side and an industrial quick disconnect on the other end.
PTI – Recommendation: This fill kit is recommended for single size plugs 12″ and smaller and PTI always recommends that you use a properly functioning gauge to verify the plug inflation pressure.
Add UQC to the end of any fill kit part number and it will include a universal coupler that will allow the fill kit to connect to either industrial or automotive QD nipples.
420 and 410 Series Fill Kit without Gauge (Rope/Hose)
This is our most economical Fill Kit without a pressure gauge.

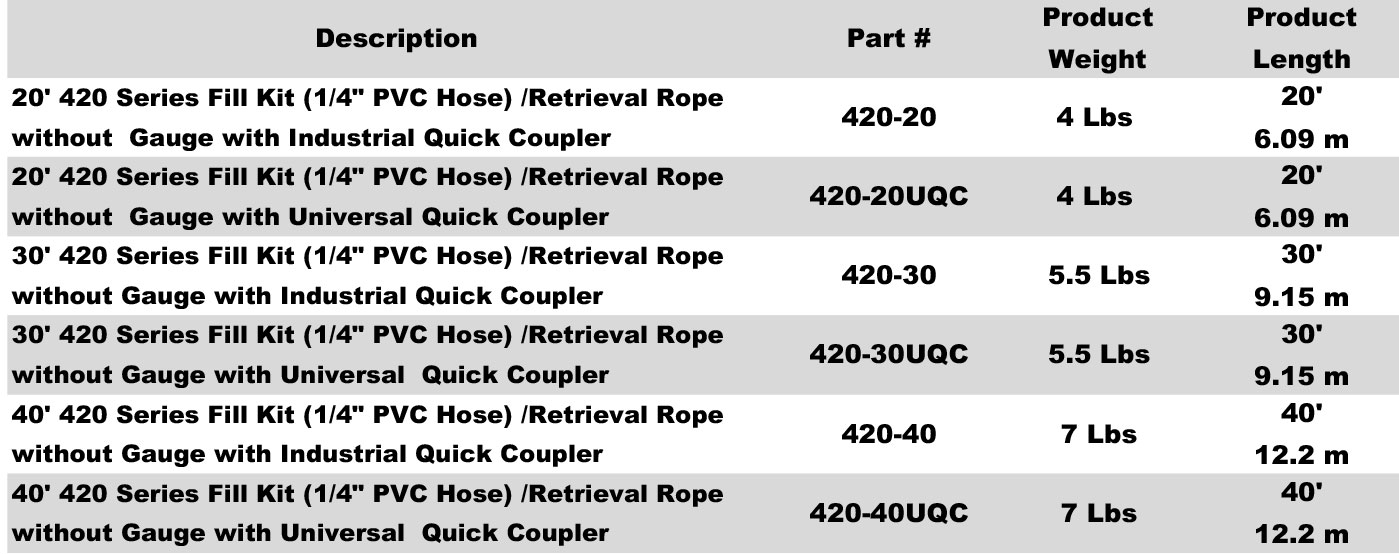

420 Series Fill Kit/Retrieval Rope (1/4” ID PVC Hose) with Quick Coupler (Industrial) without Gauge
This combination retrieval rope and inflation hose can be used to lift and lower plugs into and out of the manhole and has a fill line for inflating and deflating plugs from outside of the danger zone.
The polypropylene rope has a 3000 lb tensile strength which protects the fill line from being over stressed during the installation of your plugs.
The snap hook makes is easy to attach and detach the retrieval rope from the plug. The fill line comes with a tank valve (tire valve) on one side and an industrial quick disconnect on the other end.
Automative quick disconnect fittings available upon request.
PTI – Recommendation: This fill kit is recommended for single size plugs 12″ and smaller and PTI always recommends that you use a properly functioning gauge to verify the plug inflation pressure.
Add UQC to the end of any fill kit part number and it will include an universal coupler that will allow the fill kit to connect to either industrial or automotive QD nipples.

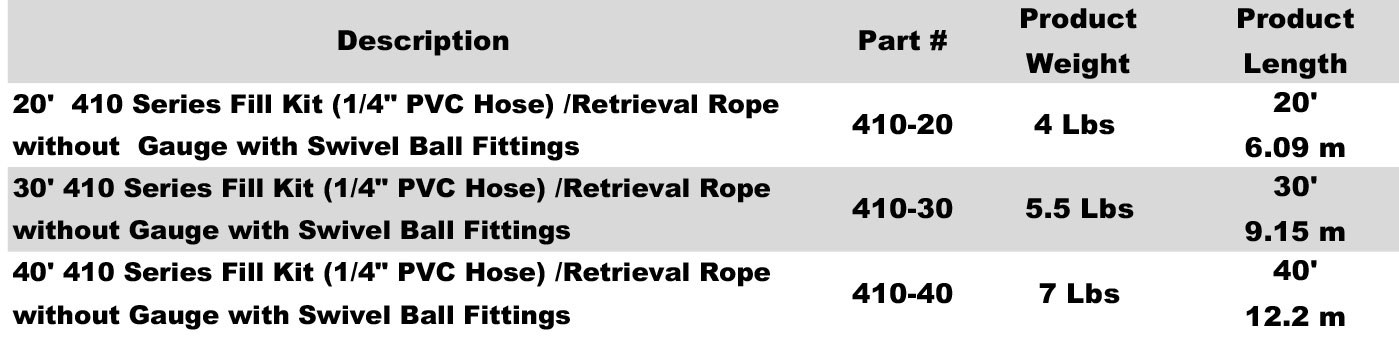

410 Series Fill Kit/Retrieval Rope (1/4” ID PVC Hose) with Swivel Ball Fitting
This combination retrieval rope and inflation hose can be used to lift and lower plugs into and out of the manhole and has a fill line for inflating and deflating plugs from outside of the danger zone.
The polypropylene rope has a 3000 lb tensile strength which protects the fill line from being over stressed during the installation of your plugs.
The snap hook makes is easy to attach and detach the retrieval rope from the plug. The fill line comes with a tank valve (tire valve) on one side and a swivel ball(tire valve) connection on the other side.
PTI – Recommendation: This fill kit is recommended for single size plugs 12″ and smaller and PTI always recommends that you use a properly functioning gauge to verify the plug inflation pressure.
410-20 Connected to 100-08
