Air Testing Equipment

Pipe testing equipment that will allow you to air test newly installed or recently repaired sewer pipes.

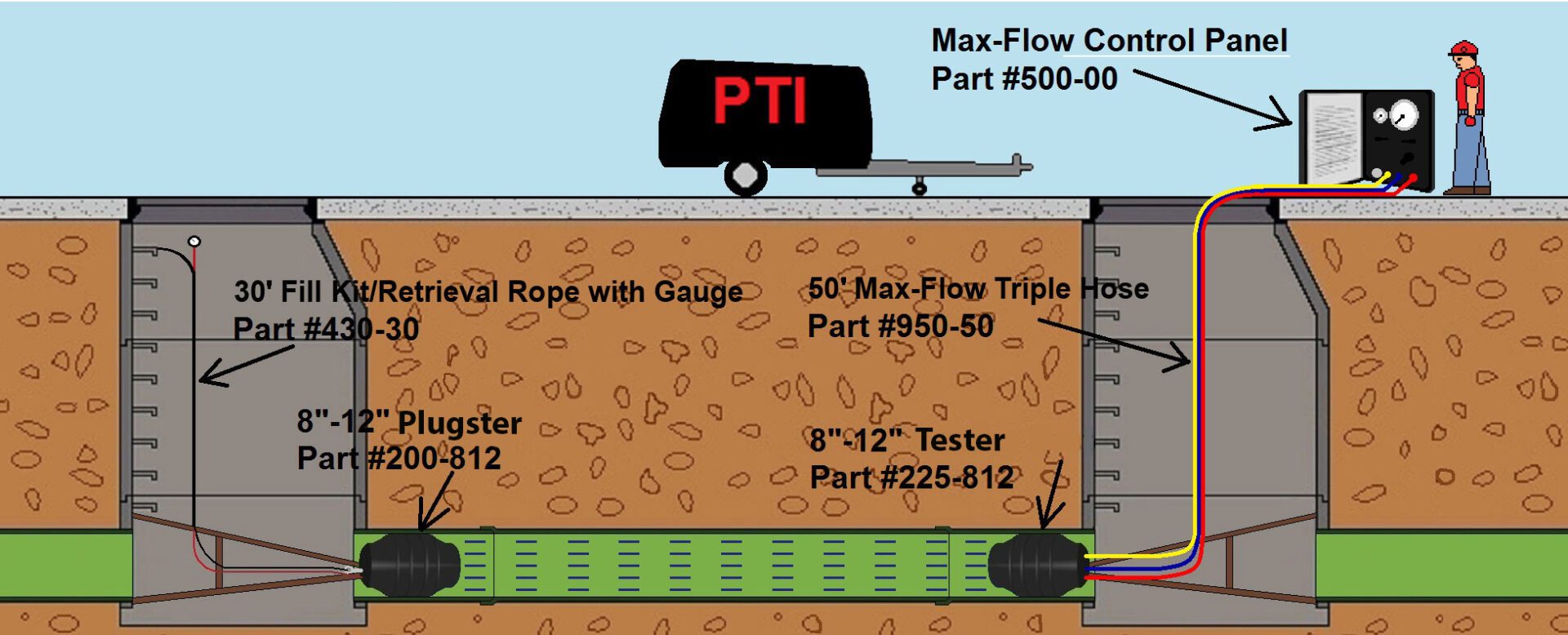

Max‐Flow Air Testing Line Acceptance Kit

Our Air Testing Kits include everything a contractor requires to perform a sewer line air test (except for the air compressor). The color coded triple hose includes quick disconnect fittings making it easy to properly connect the hose to both the Max‐Flow Control Panel and the Tester plug.

Our Max‐Flow Air Testing kits include a set (Tester and Plugster) of either 6″‐ 10″ or 8″‐ 12″ plugs. Everything comes stored in a protective hard plastic bin.

Call 855-758-4489

0500-812

0500-00

Max‐Flow Control Panel

Max-Flow Control Panel is designed to perform a line acceptance test for a pipe line. The panel is color coded to make it easy to identify and connect to the Max-Flow Triple Hose to the Tester.

The plug pressure regulator allows you to quickly inflate the Tester plug to the proper inflation pressure without over-inflating or underinflating the plug. A durable plastic Pelican^® case protects the gauges during transport and use.

Max-Flow Triple Hose

The Max-Flow Triple Hose has a 3/4″ hose (blue) that pressurizes the test area, one 1/4″ hose (red) for inflating a Tester plug and one 1/4” hose (yellow) for reading the pressure back to the test pressure gauge on the control panel.

The hoses are color coded to make it simple to identify which hose goes to each connection on the plug and the control panel.

0950-25

0525-25

Mini-Max Air Test System

Our Mini-Max Air Test System is designed to allow users to perform a line acceptance test. The 0-15 psi test gauge and the 0-60 psi plugs inflation gauge are quick connected to the Mini-Triple hose allowing the user to remove the gauges from the hose and keep them safe.

The hoses are all color coded making it easy to connect the correct hose to the correct plug port and correct gauges. This also includes a ball valve to allow the user to control the air flow from the air compressor to the test void.

Mini-Max Air Test Kit

Mini-Max Air Test Kit is used in conjunction with our 25’ and 50’ triple hose (0950-25 and 0950-50) and allows the contractor to control a sewer line air test. The kit includes a 0-15 PSI test gauge that attaches to the 1/4” read back hose (yellow). It also includes a 0-60 PSI gauge tree to attach to the 1/4” hose (red) for inflating and deflating the Tester (front) plug. The kit also includes a ball valve for controlling the air flow into the test area through the 3/4” hose (blue).

All the components are attached to the triple hose with quick disconnect fittings allowing the user to disconnect the gauges from the triple hose and store them in a safe location. Both gauges include a rubber gauge guardian to help protect the gauges during use and storage.
